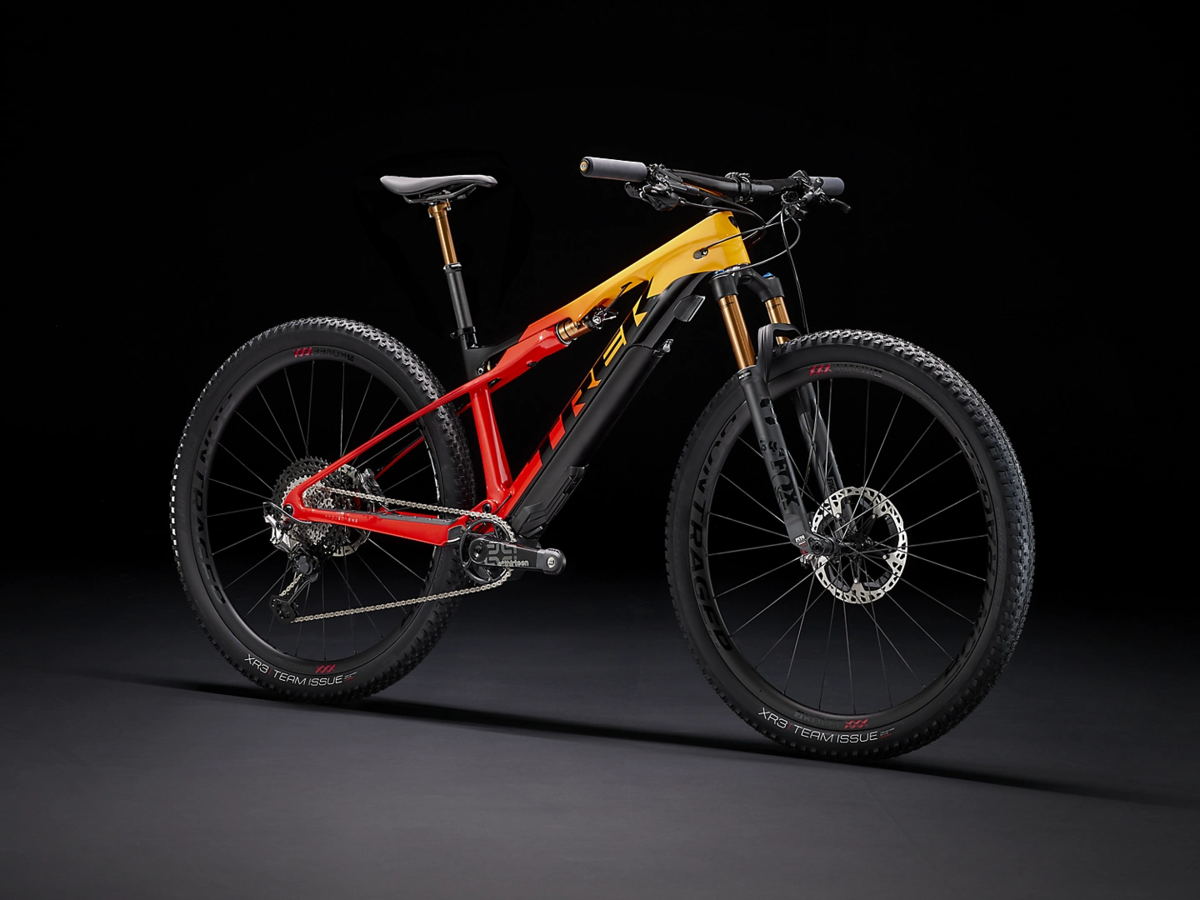

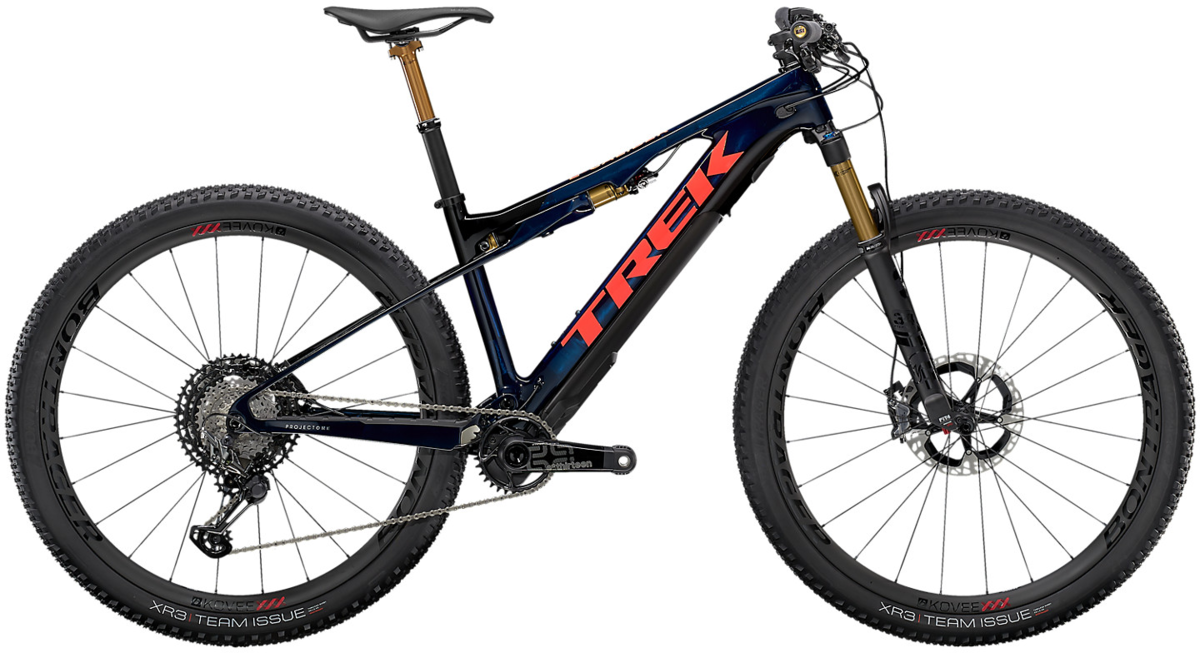

Trek E-Caliber 9.9 XTR
Details
E-Caliber 9.9 XTR is a light, fun, and fast carbon e-MTB. It's built to ride like a traditional cross country bike, and it even has the same race-worthy suspension tech as Supercaliber. The sleek and subtle Fazua drive system provides a boost without adding bulk, and you get a spec loaded with high-end parts.
It's right for you if…
You wanna ride your heart out on a lightweight e-MTB that rips singletrack just like a regular XC bike, but can give you a leg-saving boost when you want it. You also want the smoothest, lightest, more precise parts spec, filled with carbon and cutting edge tech like our IsoStrut shock.
The tech you get
A lightweight, full OCLV Mountain Carbon frame with 60mm of travel, a 120mm FOX Factory 34 Step-Cast fork, dual remote lockout, and Trek's exclusive lightweight IsoStrut FOX Factory shock. A new Fazua Ride Trail 50 and 250Wh battery that can assist up to 20 mph when it's on, and gives zero drag when it's off, plus a handlebar-mounted Fazua Ride Remote FX controller. A Shimano XTR drivetrain, a FOX Transfer SL dropper, and Kovee XXX 30 carbon wheels.
The final word
Our top-shelf E-Caliber is light, fast, and built to rip. It rides like an XC race bike-like a Supercaliber, in fact-until you decide you want a little boost to scramble up a climb or put in a few extra laps.
Why you'll love it:
- You get a helping hand from the motor on climbs and long rides, but it's a more natural-feeling assist that gives you an overall experience that's closer to riding an analog bike than a typical e-MTB
- The drive system, including the motor, is easily removable. Just take it out, pop on the included cover, and you'll have a standard mountain bike that weighs 2.9kg less than before
- IsoStrut gives you just enough rear suspension for cross country traction and comfort with less weight and more efficiency
- Pivotless seat stays save on weight and actively bend to help soak up trail chatter
- Wider Kovee XXX 30 wheels are crazy light, really strong, and provide better tire support so you can run lower pressure and get more traction
| Frame size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" |
| A — Seat tube (cm) | 39.4 | 41.9 | 47 | 50.8 |
| B — Seat tube angle | 72.3° | 72.6° | 72.8° | 72.8° |
| C — Head tube length (cm) | 9 | 10 | 10.5 | 11 |
| D — Head angle | 67.5° | 67.5° | 67.5° | 67.5° |
| E — Effective top tube (cm) | 58 | 61.7 | 64.8 | 67 |
| F — Bottom bracket height (cm) | 32.3 | 32.3 | 32.3 | 32.3 |
| G — Bottom bracket drop (cm) | 5 | 5 | 5 | 5 |
| H — Chainstay length (cm) | 44.7 | 44.7 | 44.7 | 44.7 |
| I — Offset (cm) | 4.2 | 4.2 | 4.2 | 4.2 |
| J — Trail (cm) | 10.9 | 10.9 | 10.9 | 10.9 |
| K — Wheelbase (cm) | 112.6 | 116.5 | 119.7 | 121.9 |
| L — Standover (cm) | 76.8 | 76.8 | 76.8 | 76.8 |
| M — Frame reach (cm) | 40.5 | 44 | 47 | 49 |
| N — Frame stack (cm) | 60.9 | 61.8 | 62.2 | 62.7 |
| Frame Size | Height (inches) | Height (cm) | Inseam (inches) | Inseam (cm) |
|---|---|---|---|---|
| Small | 5'0.2" - 5'5.4" | 153 - 166cm | 28.3" - 31.1" | 72 - 79cm |
| Medium | 5'3.4" - 5'8.9" | 161 - 175cm | 29.9" - 32.3" | 76 - 82cm |
| Large | 5'8.5" - 6'2" | 174 - 188cm | 32.3" - 34.6" | 82 - 88cm |
| X-Large | 6'1.2" - 6'5.2" | 186 - 196cm | 34.3" - 36.2" | 87 - 92cm |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel |
|---|---|
| Fork | Fox Factory 34 Factory Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 120mm travel |
| Rear Shock | Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm |
| Wheels |
Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle |
| Tires | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40" |
| Crankset | E*thirteen E*spec Race Carbon, 32T |
| Shifters | Shimano XTR M9100, 12 speed |
| Rear Derailleur | Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
| Cassette/Freewheel | Shimano XTR M9101, 10-51, 12 speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes | Shimano XTR M9120 4-piston hydraulic disc |
| Rotors | Shimano MT900, centerlock |
| Handlebars | Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Tape/Grips | ESI Chunky |
| Stem | Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree |
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
| Seatpost | Fox Transfer SL, 100mm travel, internal routing, 31.6mm |
| Saddle | Bontrager P3 Verse Pro, carbon rails, 145mm width |
| Pedals | Sold separately |
| Motor | Fazua Ride Trail 50 motor |
| Battery | Fazua Evation battery, 250Wh |
| Controller/Display | Fazua Remote bX |
| Charger | Fazua Evation charger, 90-120V |
* Subject to change without notice.
